Morning all

My database was quite simple, recording number of shifts worked on various contracts. The cost of each shift is taken from a staff type table.

My problem is now that the bean counters want a different rate for each staff type depending on what contract the staff member is booking to.

Could someone please give me a pointer on how to phrase a query calculated field to lookup the cost of the shift as a function of both the contract id and the staff type id. Or should I be looking to change the way in which the table relationships are structured?

Regards

Tyler

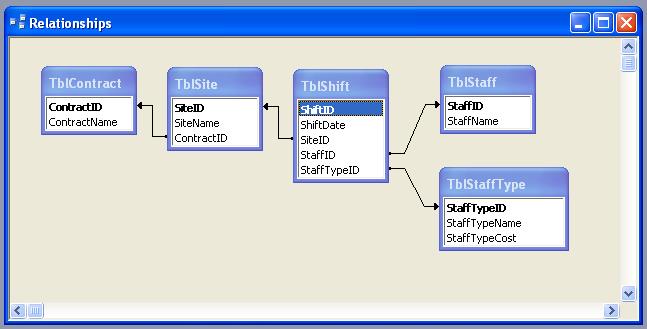

Attachments

  • AWF01.JPG
    31 KB · Views: 218
Last edited:

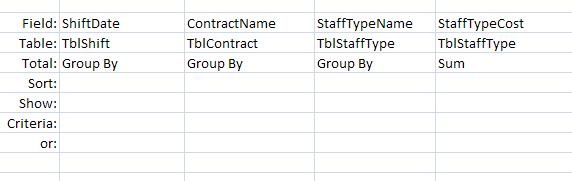

The attached should work ... really didn't know what you wanted beyond what you requested.

In this manner it groups all the cost for a particular date (so you can filter by day or a range of dates for the total cost).

Instead of contract ID, I used contract name (so you can filter by a contract name which is more meaningful than an ID number).

It also groups by staff type name, so you can also differentiate by these types.

I used the shift date because the other tables need something from the shift table because it acts like a 'hub' to the rest to do all of the right looking up.

-dK


Attachments

  • query.JPG
    18.6 KB · Views: 263
Thanks for the reply dk.

That should work great for totalling the costs, I'll use it in a report.

My problem though (which I didn't explain too well (as usual!)) is that up until now I have populated the tables using a form. I enter the shift date in a text box, select the site the person worked at from a drop down box, the contract to which the selected site belongs is displayed in a text box, I select the individual's name from a drop down box and finally select the individual's job title from another drop down box (staff type). This sometimes changes for some individuals so has to be selected separately.

The cost of the shift is then displayed in another text box as a function of the staff type selected.

What's changed is that we have been awarded a new contract with a whole set of different staff costs. So when entering a new shift worked on the new contract, the chosen staff type takes a figure from TblStaffType;StaffTypeCost that was true for previous contracts but not right for the new contract.

As there is no direct link between TblContract;ContractName and TblStaffType;StaffTypeCost in my database I wasn't sure how to structure a link.

I hope this makes a bit more sense!

Regards

Tyler

OK, your issue is dependency. Determining a cost, pay rate, or other low-level monetary value can be only two basic ways here. You can compute it or look it up. Odds are that computing it won't be feasible. So you will probably have to look it up.

This leads to the principle that "Access can't tell you anything you didn't tell it first." But your critical issue is HOW you tell it. I'm going into "school-teacher" mode for a bit. Hope you understand it as an attempt to be instructive, not insulting.

Let's do this ab initio. On what does this monetary value depend? Let me take an example that might be close to your situation and show you how to structure that table.

First, you have a basic staff cost value, a monetary value of some sort. We assume you must look it up. OK, that has to be in some sort of lookup table. No problem so far.

On what does that value depend? How about some sort of staffing category, rank, or position? OK, that should be part of the same table. This is a "normalization" thing, in that a value that depends on something is a "dependent" field. The thing on which it depends is the "independent" field. Your value should therefore be selectable by a lookup based on the independent field.

Since it could be a long title and you don't want long table keys, have a table of job positions and a job-title code, maybe call it PosID. Then you want this lookup table to have the PosID and Title, and your pay table now has the PosID as a foreign key to the job title table.

Now you have the added wrinkle that the contract complicates that definition. Ok, so you have to know which contract that is. Well, that means you need a contract table. But I work for the government and I know how long contract names and "official" numbers can get, so I bet you'll need a contract ID number for internal use. Call it ContrID. Now you have a contracts table with a prime key of ContrID and the long name and other designations for your contract. So ... how do you USE that?

Well, you said something about the job title depending on the contract. There is another normalization rule that if something depends on more than one factor, you must include all of the independent factors as keys to that table. You just added a field to your job-title table, the ContrID. Here is where you have to make a decision and it requires knowledge of your business operational rules.

Case I: The pay rate depends less on contract and more on the employee's position code. You have a few position codes no matter what the title appears to be. I.e. contract job-title is a sham, the real discriminator is that job ID code and nothing else.

In this case, your job-title table repeats the job-code but the combination of job code and contract ID must be unique. (Compound primary key.) You can use the job code derived from the job title table to select one of a short list of values in your rate table and the contract code doesn't enter into the pay table except through selection of the pay rate number. I.e. an indirect dependence. Normalization says the contract code CANNOT be in the pay table in that case. It would represent a key for which no field in the pay table has any direct dependency. You have a diagram in which you have a dependency link from contract to job title and another link from job title to pay rate.

Case II: The pay rate of a give job code depends on the contract, i.e. Computer Operator I pays X$/hour on contract 1 and Y$/hour on contract 2. In this case, not only does the job-title table require the contract ID, so does the job-pay table. So you add the contract number to the pay rate table as well. That is because the pay rate is dependent on TWO elements - job ID and contract ID. So normalization requires both keys to be part of the lookup table. You have a diagram with an extra link this time. You have the link from contract to job title and from job title to pay rate. BUT you also have a direct link from contract to pay rate.

This is the kind of thinking you can use to construct the contents of these complex tables. Please be aware that there are also "deconstructive" methods for this. I just gave you the bottom-up method because it's what I use. You can apply this style of thinking to your problem one element at a time until you run out of elements.

Remember, dependency is of crucial importance. Things that depend on something else directly must have an ID of that something else in the table. This is a direct dependence. Things that depend only on that something else through another choice made elsewhere don't have that something else in the same table with them.

In either case, YOUR next step is to decide which case applies and search this forum for the topic called "cascading combo boxes." It is a way for you to select the contract ID first and then when you select job title, you only see the titles relevant to that contract.

If you have not read up much on normalization, NOW is the time to start. Or maybe even YESTERDAY. Google or Yahoo search (or pick another flavor) for Database Normalization. It is a crucial topic. But you'll get a gazillion hits on that. Narrow the internet search to the Wikipedia article, a couple of .EDU domain entries, and maybe the .COM sites of DB vendors you know about. ORACLE, Sybase, Focus, Ingres... and the manufacturers of those products. Access Help has a good starter article.

Search this forum, too. We have had some lengthy discussions regarding database normalization here. It will be a lot of reading, but when you get to the point that you have read the fifth or sixth article and don't feel you are getting any more out of it, you can slow down for a while.

Last hint about normalization. There are 5 recognized levels, sometimes referred to using the term "normal forms." As in, 1st normal form, 4th normal form, etc. MOST of the time, getting to 3rd normal form is enough for an Access level database. BUT don't forget that every problem is unique. Read up on the forms with person's names attached, because they represent oddball cases of dependency that aren't specifically addressed by the 1st-5th normal forms. They might not apply, but only YOU can analyze your problem well enough and intimately enough to know that.

Last edited:
oc Man

Thanks you very much for your most informative and verbose reply. The dependency issue is now more clear in my mind.

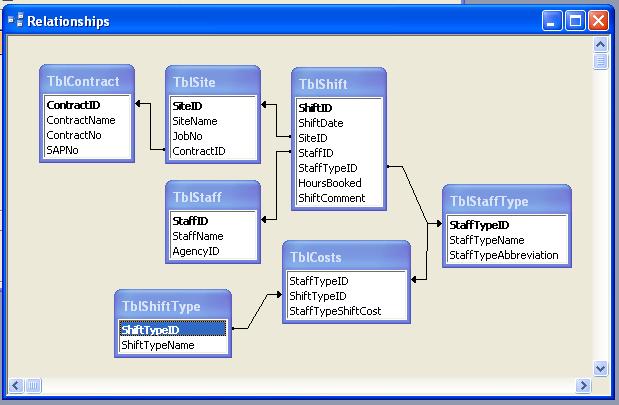

The monetary figures in the database were taken from the original tender submission and so as such represent income rather than cost. So prior to your reply I had added a new table for shift costs and shift type and created a many to many relationship so that the selected cost figure is chosen as a function of both the Shift Type and Staff Type. See attached.

However, after showing our commercial man your response, he now wants actual costs rather than figures from the tender submission.

I shall be spending some more time on my database! Thanks again for your help.

Regards

Tyler

PS - I'm a certified grandpa and proud of it too!!!


Attachments

  • AWF02.JPG
    41.8 KB · Views: 228
