Solved Forms - White space between footer and detail unwanted (1 Viewer)

Local time
Tomorrow, 03:18
Joined
Sep 14, 2020
Messages
35
Hi,
I have searched for an answer to no avail - maybe my search criteria is the problem?

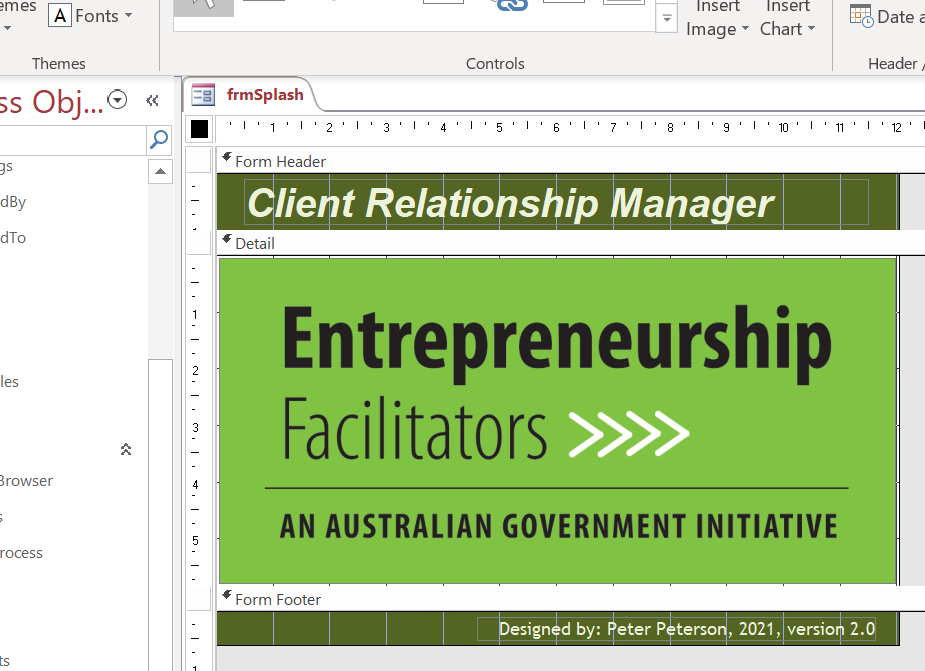

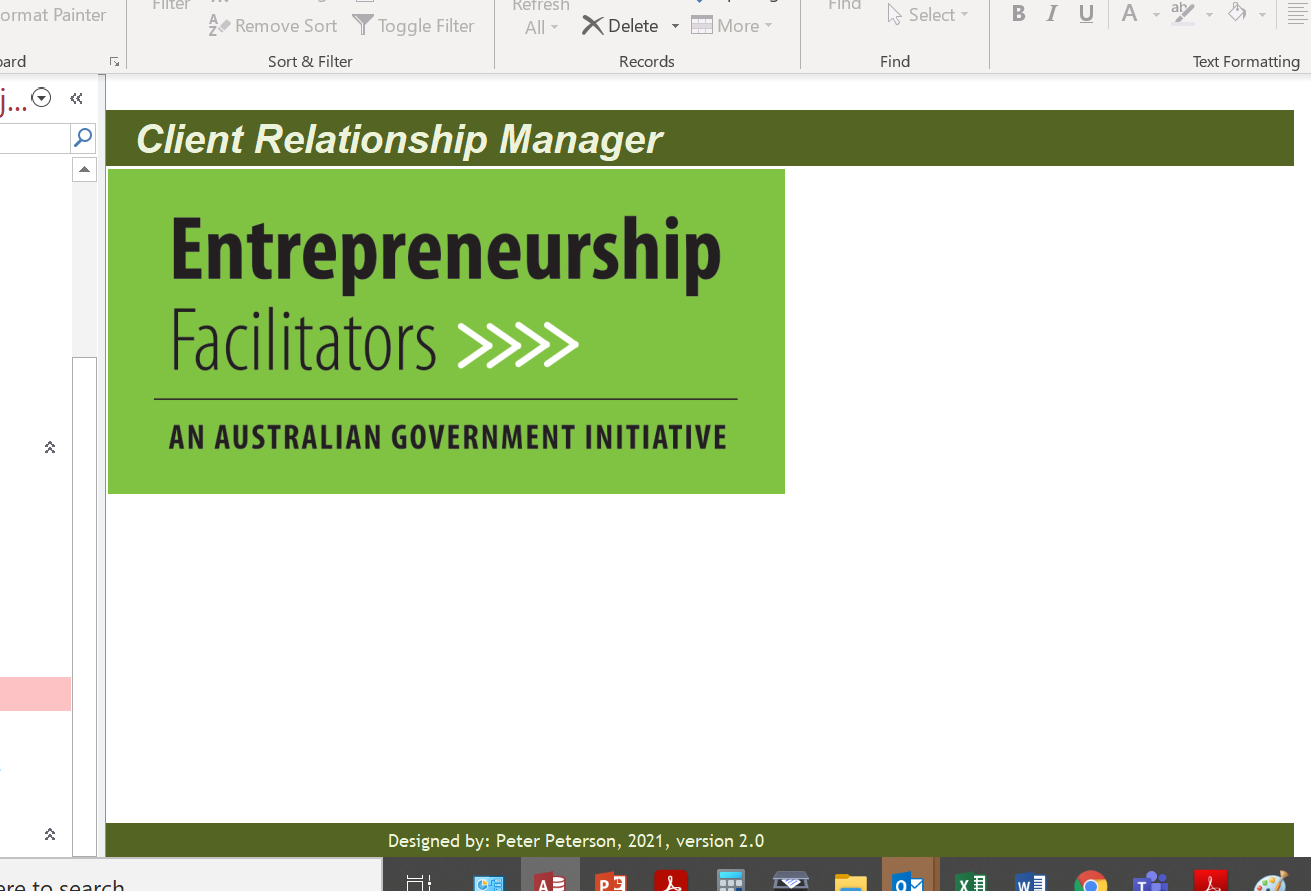

As per attached images, my Form in Design View looks fine, however, in Form View it is different.
I have checked the Form sizes in Properties and they seem fine.
Any ideas as to what is going on and how I can resolve this will be appreciated.
Regards
Peter


Attachments

  • frmSplash-design.png
    105.2 KB · Views: 134
  • frmSplash.png
    134.4 KB · Views: 134

theDBguy

I’m here to help
Staff member
Local time
Today, 09:18
Joined
Oct 29, 2018
Messages
16,612
Hi. Are you using a Popup form? If not, do you still have the same problem if you switch the form to a popup (just for testing)?


pbaldy

Wino Moderator
Staff member
Local time
Today, 09:18
Joined
Aug 30, 2003
Messages
35,412
It looks like it's been maximized or in tab view.

Local time
Tomorrow, 03:18
Joined
Sep 14, 2020
Messages
35
Thank you for replying @theDBguy and @pbaldy,
I am using a Popup form.
I did change to 'No' Popup form and the problem is the same - except the header and footer dark colour goes across the whole tab.
I need to mention I initially had the Form with detail only 17cm wide.
I then decided to add the Header and Footer and simultaneously reduced the Form width to 12cm.
The attached image is a Popup image that seems to believe it is 17cm wide.
Is there a setting hidden somewhere I need to change/update?
Regards
Peter


theDBguy

I’m here to help
Staff member
Local time
Today, 09:18
Joined
Oct 29, 2018
Messages
16,612
Hi Peter. The header and footer sizes are fixed, but the detail section automatically resizes to fill the form window. One setting you could try is set the Auto Resize option to Yes.

Local time
Tomorrow, 03:18
Joined
Sep 14, 2020
Messages
35
A quick thought - could it be the size (native) of the image that is causing the form to be 17cm wide.
I used the corner grips of the image to drag it into 12cm wide.


theDBguy

I’m here to help
Staff member
Local time
Today, 09:18
Joined
Oct 29, 2018
Messages
16,612
A quick thought - could it be the size (native) of the image that is causing the form to be 17cm wide.
I used the corner grips of the image to drag it into 12cm wide.
If that's the case, try using the image as a form background instead.
