CDO EMail Tester

[isladogs]

Attached is a simple utility for testing the settings for sending emails from Access using collaborative data objects (CDO).

The zip file contains the Access utility (.accdb) & a Word help file (.docx)
I've had to zip it as the site won't allow uploading of docx files!

If the email fails due to incorrect settings, the Word doc explains what the error code means so it can be fixed.

To use this utility copy the database & Word doc into the same folder

Any comments welcomed.

I have included all error codes I have experienced, but if anyone using this gets another code, please do let me know

EDIT 02/10/2018
This version only works in 32-bit Access
Updated version in post #3 works in both 32-bit & 64-bit Access



[Ksabai]

Re: EMail Tester

I have a 64Bit Access, unable to run as iam getting PtrSafe Error while compiling



[isladogs]

Apologies - thought I'd sorted that out before I uploaded it last year
Updated version attached which works in both 32-bit & 64-bit Access



[isladogs]

Following an question via PM by AWF member ellenr, I've discovered a new issue sending email using CDO using a GMail account
Google has added additional security which effectively blocks email sent from any app it considers less secure (including Outlook and Access).
This results in an incorrect password error when you enter your correct account details.

There are two possible solutions both of which require a change in the security section of your Google account settings:
a) allow less secure apps - if this is applied, GMail will again work via CDO.
However, this is not available if you have switched on two step authentication

b) set app password = enter a name for the app e.g. CDOEMailTester and it will generate a unique password for that app and your account.
Enter that in place of your usual password & CDO email for your GMail account will again work perfectly!

See these links for more info:
a) https://support.google.com/accounts/answer/6010255?hl=en&ref_topic=7188673#
b) https://support.google.com/accounts/answer/185833?hl=en

Updated app to v1903 with new help file - both attached



[isladogs]

Something I’ve been meaning to do for a long time
I’ve just updated my CDO Email Tester to include HTML Email as well as plain text.

Unzip the attached file & keep all files in the same folder

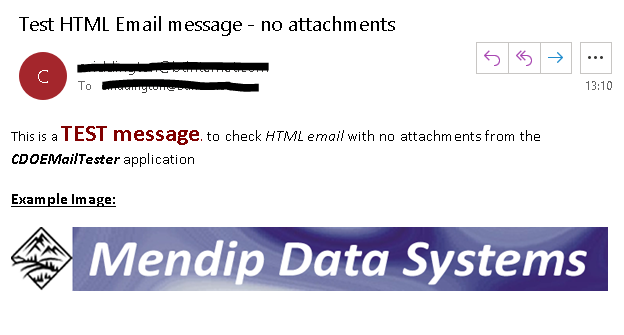

If you use HTML email, it will automatically include formatted text and an inline image.

Hope this is of use to others



[isladogs]

Further update to version 2201
Many thanks to AWF member @alvingenius for alerting me to an issue with non-Latin scripts such as Arabic / Chinese not displaying properly as these require the use of UTF-8 characters
Even better, he provided the code changes needed to fix that issue!

The solution was to add encoding instructions in 2 procedures:

a) Add one line to SendEMaIlCDO procedure (plain text emails)

With Message
        .To = aTo
        .Subject = aSubject
        .TextBody = aTextBody
        .BodyPart.Charset = "UTF-8"                 'fixes issues with e.g. use of Arabic text in Subject and body
        If Len(aCC) > 0 Then .CC = aCC
        If Len(aFrom) > 0 Then .From = aFrom
        If Len(aPath) > 0 Then .AddAttachment (aPath)
        .Send    '
End With

a) Add two lines to SendHTMLEMaIlCDO procedure (HTML emails)

With Message
        .To = aTo
        .Subject = aSubject
        .HTMLBody = aTextBody
        .BodyPart.Charset = "UTF-8"         'fixes issues with e.g. use of Arabic text in Subject
        .HTMLBodyPart.Charset = "UTF-8"       'fixes issues with e.g. use of Arabic text in HTML Body
        If Len(aCC) > 0 Then .CC = aCC
        If Len(aFrom) > 0 Then .From = aFrom
        If Len(aPath) > 0 Then .AddAttachment (aPath)
        .Send    'Send the message
End With

The updated version containing these changes is attached .... or it can be downloaded from my website

CDO EMail Tester

Used to test sending HTML or plain text emails directly from Access without using Outlook. Attachments can also be added. Images and links can be added to HTML email. EMail settings can optionally be included in the email body.

www.isladogs.co.uk



[isladogs]

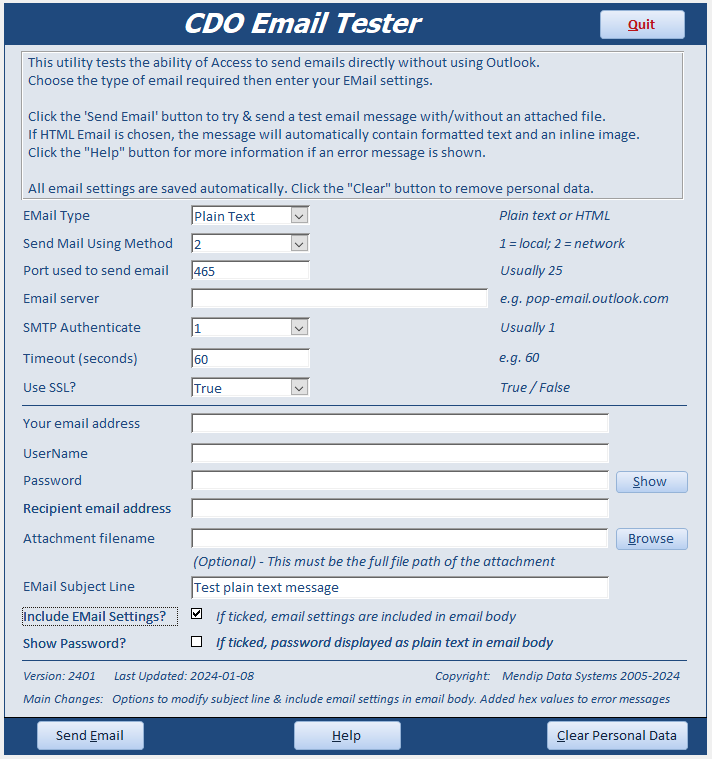

Further update to v2401

The latest version has additional functionality suggested from user feedback including options to:

• temporarily display the password as plain text
• modify the email subject line
• include email settings / password in email body

I've also added hex values to error messages & updated the help file

I hope the new features will make it even more useful for troubleshooting sending email directly from Access without involving Outlook using Collaborative Data Objects (CDO).

For more details, see my web article:

CDO EMail Tester

Used to test sending HTML or plain text emails directly from Access without using Outlook. Attachments can also be added. Images and links can be added to HTML email. EMail settings can optionally be included in the email body.

isladogs.co.uk

EDIT 9 Jan 2024
Replaced example app attached as I found a few minor bugs. Should now be OK
