G'day,
I have created a split form using the access 2010 standard form creation wizard and it seems to work ok except that the database form is too wide.
The data entry form is ok.
I have been fooling with it for quite a few hours without much success.
If I try to edit the form it shows me the data entry record form but not the database form. Hence I can't get in there to edit the database form shape, size width etc

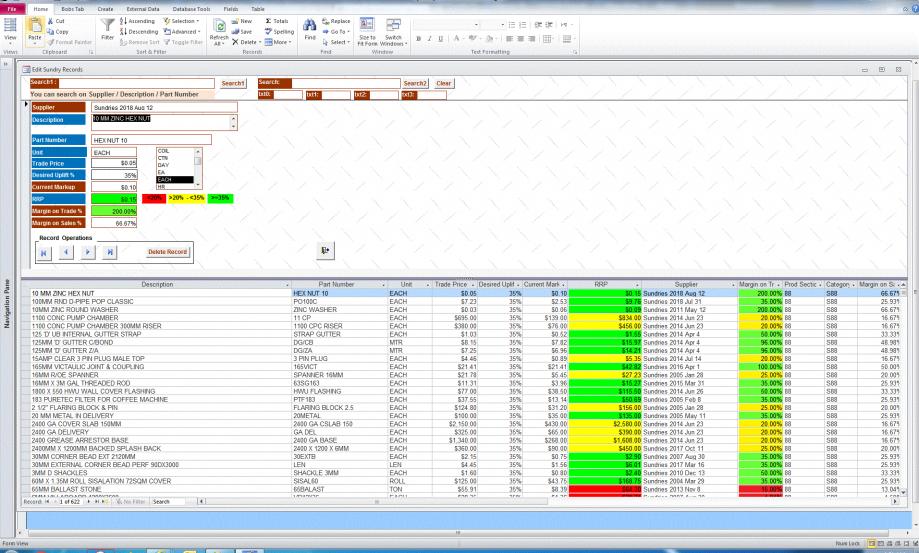

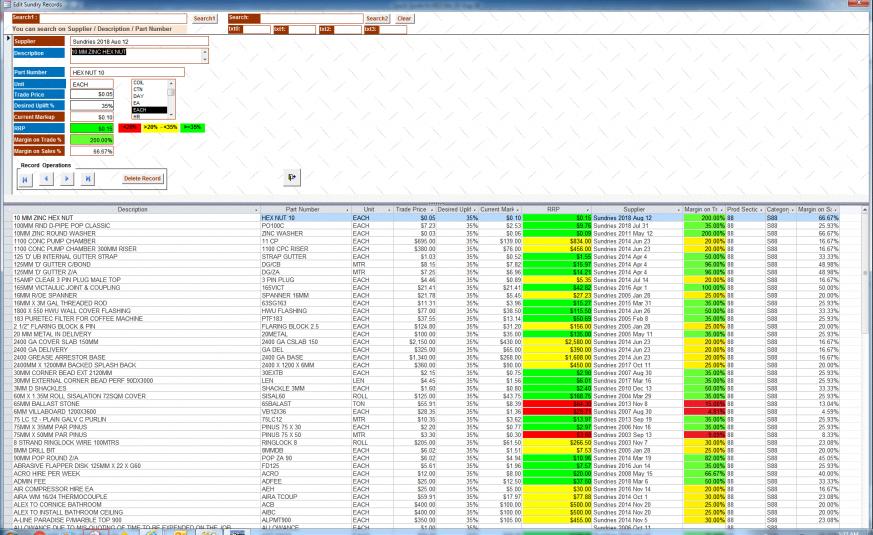

Each time the form loads I seem to get two different results. In one case the datasheet and the single form view are perfect as per Snip1 with the horizontal scroll bar allowing me to view columns on the right if I so desire. If I then close the form and reopen it, the form appears to be too long and is over flowing the page in the datasheet area (as per snip2).
I have had similar problems with it sometimes loading and the datasheet view being too wide.
Any suggestions or pointers would be greatly appreciated.


Attachments

  • Snip1 ok.jpg
    Snip1 ok.jpg
    100.7 KB · Views: 18
  • Snip2.jpg
    102.7 KB · Views: 17

June7

AWF VIP
Local time
Yesterday, 19:26
Joined
Mar 9, 2014
Messages
4,450
Split form is known to have some frustrating behavior.

Try setting the Split Form Size property to control height of the datasheet area (if Orientation property is set to left or right then Split Form Size sets width of datasheet area).

The form opens to full width of Access window and this cannot be altered.


isladogs

CID VIP
Local time
Today, 04:26
Joined
Jan 14, 2017
Messages
16,382
The emulated split form in this thread https://www.access-programmers.co.uk/forums/showthread.php?t=294421 was designed to overcome many issues inherent in the standard split form.

It was a pain to do and went through many iterations before the final definitive version but that works well.

Have a look at it and see if it solves your problems.


HealthyB1

Registered User.
Local time
Today, 12:56
Joined
Jul 21, 2013
Messages
82
Hi Colin,
Many thanks for your prompt response.
I am glad to hear that I am not the only one to have suffered as a result of using the standard split form.
I'll go through the suggested link and examples today and see what I can do.
Once again thank you!
HealthyB


isladogs

CID VIP
Local time
Today, 04:26
Joined
Jan 14, 2017
Messages
16,382
You're welcome.

Another thing you should try first is to remove the 'layout guides' that Access (un)helpfully adds on all forms created with the wizard

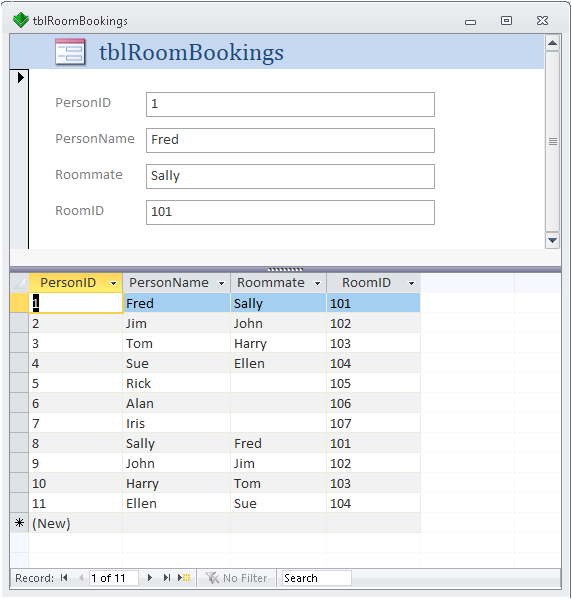

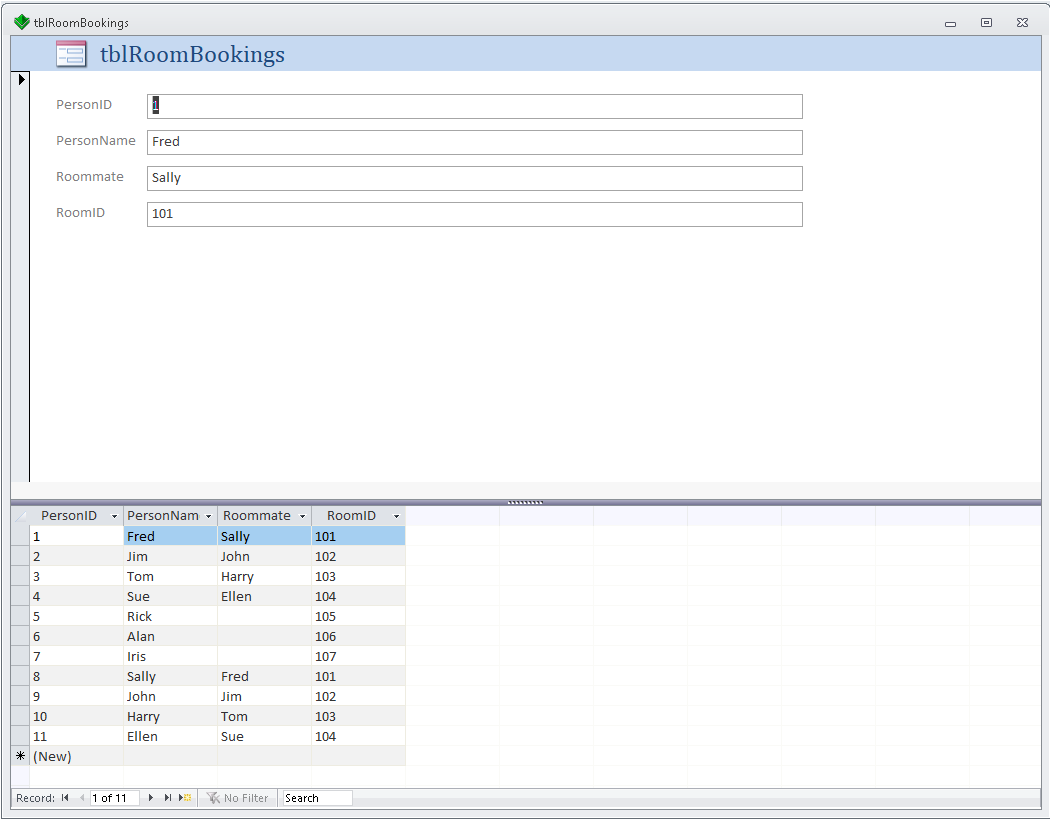

Here is a split form I created as an example - lots of empty space

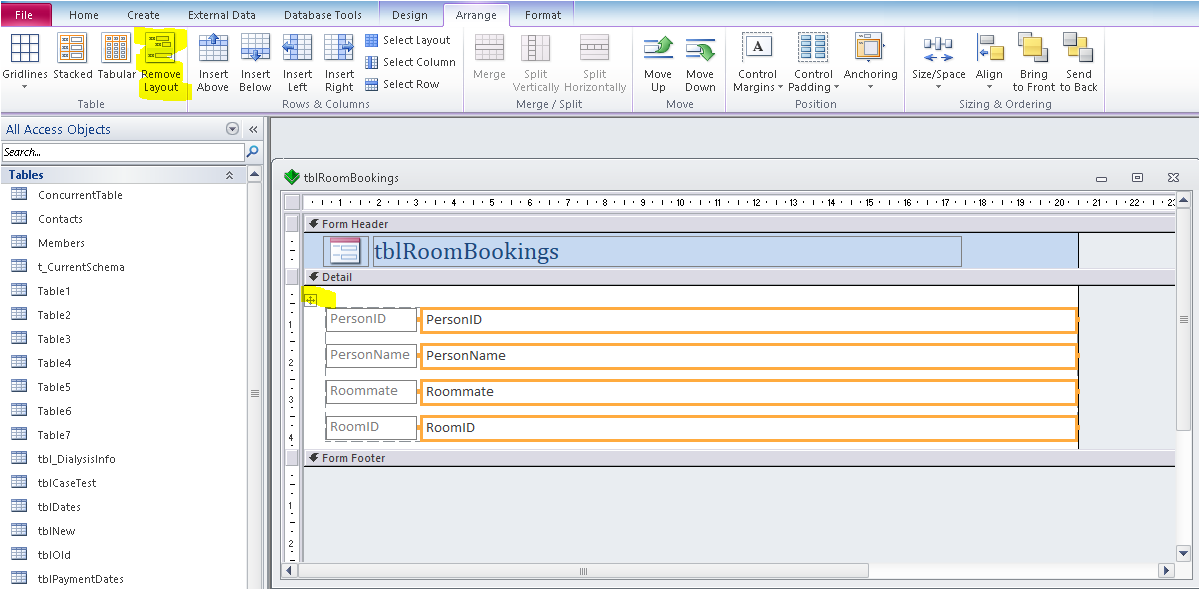

Go to design view and click on the edge of your controls until you see a dotted line and a small cross. Persevere if you don't find it immediately.



Now click on Remove Layout in the Arrange ribbon then reduce the control widths to whatever you want.
They don't have to be the same width as each other

You can also move the dividing bar between the two sections up/down as needed

The end result will be much better



Attachments

  • CaptureB4.PNG
    28.6 KB · Views: 81
  • CaptureAFTER.PNG
    22.8 KB · Views: 89
  • Capture.PNG
    67.8 KB · Views: 103

HealthyB1

Registered User.
Local time
Today, 12:56
Joined
Jul 21, 2013
Messages
82
Hi Colin,
I was aware of that gotcha and discovered same several years ago. But thanks for advising me of same.


isladogs

CID VIP
Local time
Today, 04:26
Joined
Jan 14, 2017
Messages
16,382
You're welcome.
It might help someone else anyway.
I HATE the layout guides so never use the wizards to create anything these days!
