Combo box to display 5 charts and 3 single images (1 Viewer)

[gippsy]

Hello

In Access 2013, I have a combobox that when selecting a value displays 5 charts, each chart based on query.

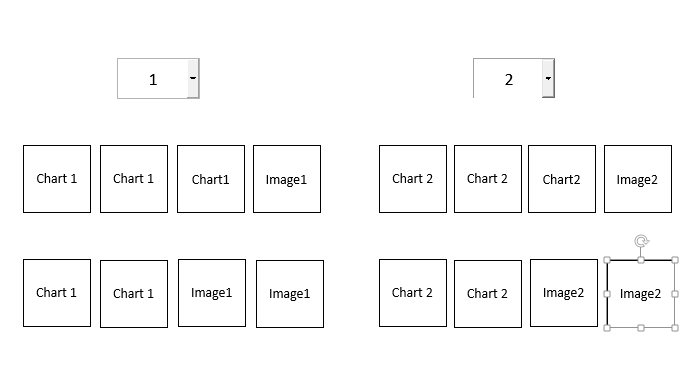

I need in the same combo box that when selecting a value displays 5 charts and a unique image displayed for each value:banghead:. See example

Each image is different and has a file path related to combo box value and chart value.

Any help would be appreciated.



[Minty]

So what have you tried?



[gippsy]

Minty. Many thanks for your reply.
My combo already displays the 5 charts, however, I have been unable to displays the 3 images at a time.

I Tried with no success.

[Private Sub mycbx_Change()
Me.Image5.Picture = Me.mycbx.Column(2)
End Sub]


[Private Sub Form_Load()
Me.Image5.Picture = Me.mycbx.Column(2)
End Sub]



[Minty]

Can you get a single image to load? I seem to remember somewhere in my old grey matter, that there was an issue with having more than one image file on a form at a time ?



[gippsy]

I enclose an image



[Minty]

Sorry - I meant have you tried just getting one image to display on the form. Not upload one here.



[gippsy]

Minty

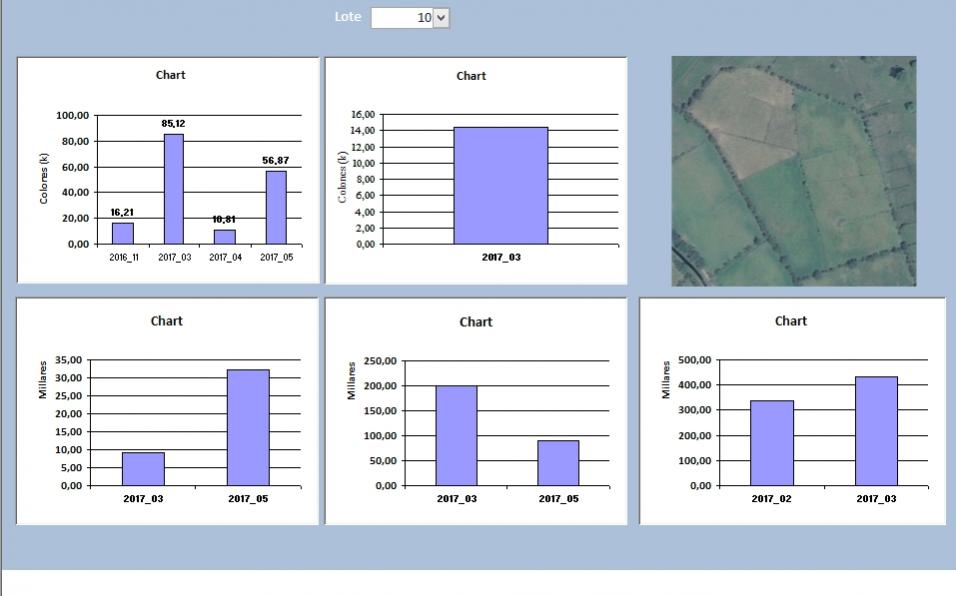

I enclose the forms displaying 5 charts and one image.

The charts are displaying by the combo box. The image is displayed using the built-in navigation buttons.

I am looking for that the combo box value will display charts an images.:banghead:

Many thanks



[isladogs]

I Tried with no success.

Private Sub mycbx_Change()
Me.Image5.Picture = Me.mycbx.Column(2)
End Sub


Private Sub Form_Load()
Me.Image5.Picture = Me.mycbx.Column(2)
End Sub

I think you are saying that the path to the 3 images are contained in the combo box mycbx.
It can be difficult to use data direct from the combobox columns for some purposes.

So assuming that:
- image1 path =mycbx.Column(2)
- image2 path =mycbx.Column(3)
- image3 path =mycbx.Column(4)

Try this:
Create 3 hidden textboxes on your form: txtImage1/txtImage2/txtImage3

Set the record source of each as:

Me.txtImage1=mycbx.Column(2)
Me.txtImage2=mycbx.Column(3)
Me.txtImage3=mycbx.Column(4)

Then use this code wherever it works for the one image:

Me.Image1.Picture = Me.txtImage1
Me.Image2.Picture = Me.txtImage2
Me.Image3.Picture = Me.txtImage3

It adds an extra step but it may do what you want
