Exporting a graph/chart from Microsoft Access to PDF/JPEG/GIF (1 Viewer)

[Cark]

I have a Form called FrmFleet which contains a Tab Control Box which has the tabs Report Builder and Summary Charts. I have been able to get everything in my Report Builder tab working as intended and for convenience I have pulled out all the filters etc to make it easier to look/navigate in my example.

On the Summary Charts Tab I have a simple Graph Object that I would like to export to a PDF/JPG/GIF etc using the Export button below it.

I have struggled to find example code that allows me to export it and it seems as though there are many ways to create a graph and many ways to export them, however I have been unable to find a method that works, although I admit I am very much fumbling around with this.

Any ideas?



[June7]

Review:

http://www.accessforums.net/showthread.php?t=42816

http://www.accessforums.net/showthread.php?t=71802

https://stackoverflow.com/questions/1262698/exporting-charts-of-access-to-image-format

Image file is created but all cause errors I cannot get around.



[JHB]

I'm not able to change the form to another tabs, so I can't look at your example.



[Cark]

@JHB how exactly are you unable to change the tabs? Is it not letting you jump from Report Builder to Summary Charts?



[JHB]

The database crash when I try to change the tab, (from Report Builder to Summary Charts).
I'm using MS-Access 2010, which version do you use?
Have you tried to download your database from here and open it and change the tab?



[Cark]

I downloaded the database back from the post and I was able to switch between tabs with no issues. I am using Access 2016 so there might be a bit of a conflict there.

To try and help you help me, I have tweaked the database, by removing the Page Tabs, so that we are simply looking at the thing causing me the problem.

This newly attached database has:

• A simple query which counts up how many times A330, CRJTK and EM90 appear in the main table TblFleet.
• The query is then used in the Chart Object called AdvancedGraph.
• The Export Button appears to work correctly by exporting the graph to a predefined location.

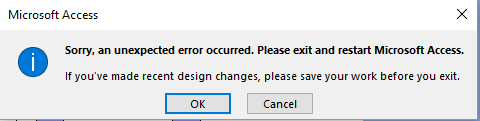

• When I then try to close the form FrmFleet, I get an error message saying "Sorry, an unexpected error occurred. Please exit and restart Microsoft Access."

Any ideas what is causing this error message? I have not been able to find anything on google that addresses this issue.



[JHB]

It works by me with the below code, new codeline added marked with red, (remember to change the blue codeline).
Working database (by me) attached.

   Set grpApp = Nothing
    Set grpApp = Me.AdvancedGraph.Object

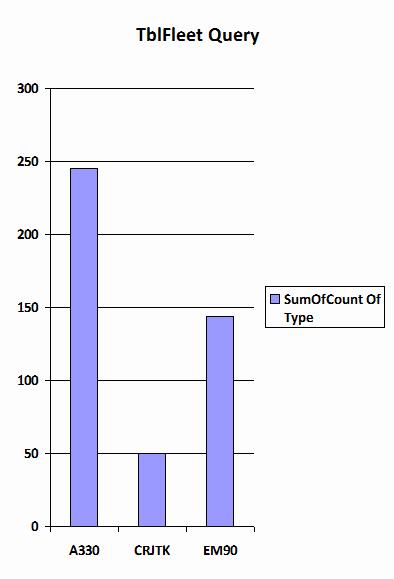

    grpApp.export [COLOR=Blue][B]"C:\Access programmer\TestJHB.jpg"[/B][/COLOR]
    Me.AdvancedGraph.Locked = False
    Me.AdvancedGraph.Enabled = True

    Set grpApp = Nothing
  [B][COLOR=Red]  Me.AdvancedGraph.Action = acOLEClose[/COLOR][/B]
    Me.AdvancedGraph.Locked = True
    Me.AdvancedGraph.Enabled = False



[Cark]

Awesome, that's much appreciated.

Would you be able to explain why the line "Me.AdvancedGraph.Action = acOLEClose" is required and why it causes the error? I am relatively new to OLE items.

The error message Access was spitting out was horribly vague and confusing.



[JHB]

..
Would you be able to explain why the line "Me.AdvancedGraph.Action = acOLEClose" is required and why it causes the error?
..

Sorry - No.

..
The error message Access was spitting out was horribly vague and confusing.

Get use to it - the error message from Access isn't always clear, (mostly not, but you learn what it can cause the error when you stay long enough by MS-Access), by me it was a quiet another error message, more and less the below:
"The OLE server may not be registered.
"To register the OLE server please install it again".



[June7]

@JHB, Testing your db. It works one time then have to close and reopen form to repeat the export. But at least it does work. My graph was already enabled and not locked so wouldn't think those lines needed. BUT, I set graph as locked and disabled then used the code. AND it all worked - ONCE. Now back to getting the same errors, even after closing/reopening, C&R. Insists on repairing, yet your example db does not. Tried rebuilding graph on my form, still errors. This is very annoying. Ended up importing your form and deleting mine.



[JHB]

@JHB, Testing your db. It works one time then have to close and reopen form to repeat the export.

You can make a work around - close and open the form again by code, it is not perfect but it works.

  Dim TheFormName As String
  ..
  ..
  TheFormName = Me.Name
  DoCmd.Close acForm, TheFormName, acSaveNo
  DoCmd.OpenForm TheFormName



[Cark]

Due to the fact I have quite a few OnLoad, OnOpen and OnCurrent events, it causes my screen to flicker when it loads the text boxes and graphs. Is there an alternative workaround to the DoCmd close and open method?



[June7]

Don't know what causes the issue so really hard to determine better solution. If Refresh or Requery don't resolve, then only recourse I see is close/reopen.
