Solved Exporting images from MSysResources (1 Viewer)

[KitaYama]

I'm looking at a database with more than 5000 images in MSysResources table.
Before deleting them all, I wanted to have a look at what they really are. Opening them one by one, doesn't seem to be elegant.

Is there any peace of code (or any other way) to export these images to a folder?

I appreciate any kind of advice.



[ComputerVersteher]

The images are stored as attachments. To access them you need to know that they are stored as a recordset in the "Data" Field of MSysRecources. See Work with attachments in DAO.

Sub ExportAttachmentsFromMSysRessources()
Dim db As DAO.Database
Set db = CurrentDb
Dim mSysResources As DAO.Recordset
Set mSysResources = db.OpenRecordset("MSysResources", dbOpenSnapshot)
Do Until mSysResources.EOF
    Dim attachmentData As DAO.Recordset
    Set attachmentData = mSysResources.Fields("Data").Value
    If Not attachmentData.EOF Then
        Const pathToFolder  As String = "path\To\Folder"
        attachmentData.Fields("FileData").SaveToFile pathToFolder & "\" & mSysResources.Fields("Name").Value & "." & mSysResources.Fields("Extension").Value
    End If
    mSysResources.MoveNext
Loop
End Sub

Just replace "path\To\Folder" with valid path.



[CJ_London]

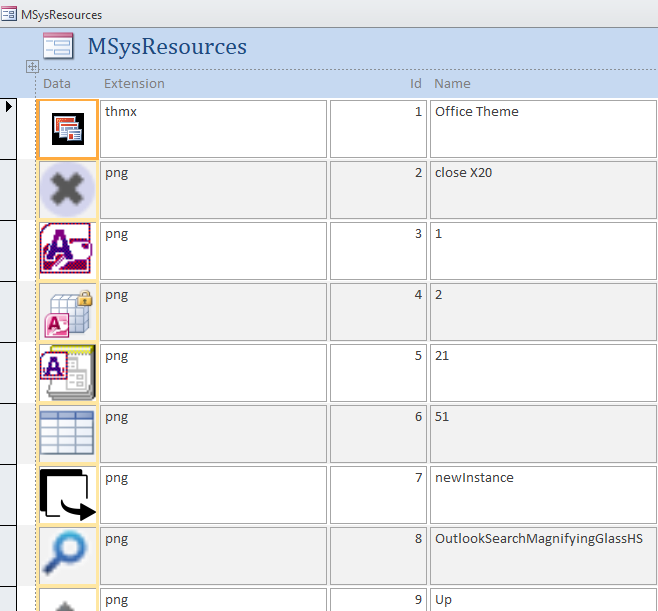

just create a continuous form based on msysresources
images should appear under the data tab
Not sure if anything other than images are contained in the table but you might need to apply a filter

I used the wizard which produced this



[KitaYama]

Thanks to both.
I‘lol test both given solutions in the morning as soon as I’m back to my job



[KitaYama]

I tested both solution and they were perfect.
I appreciate the help.



[zinfra]

I'm looking at a database with more than 5000 images in MSysResources table.
Before deleting them all, I wanted to have a look at what they really are. Opening them one by one, doesn't seem to be elegant.

Is there any peace of code (or any other way) to export these images to a folder?

I appreciate any kind of advice.

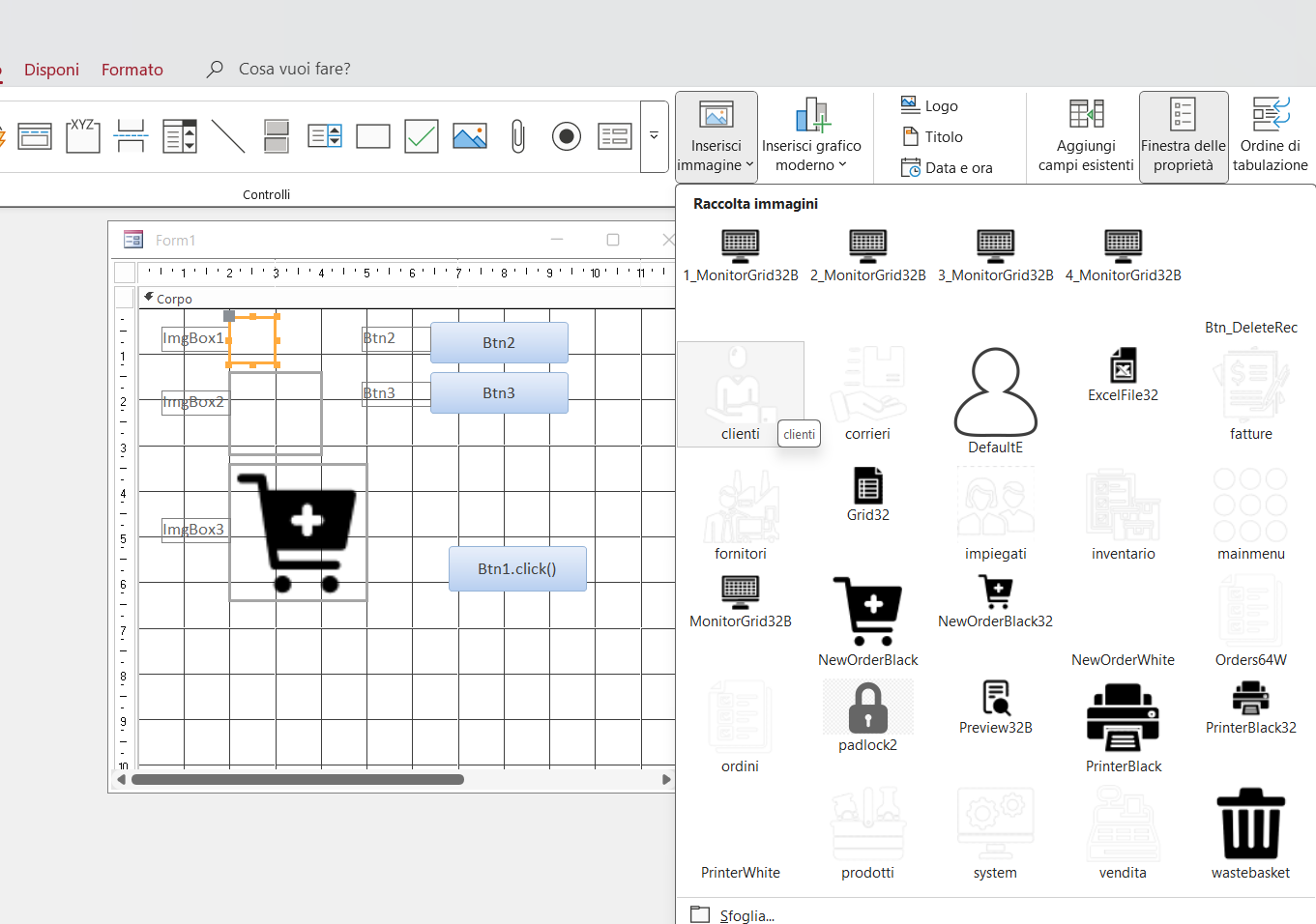

Simpy refer to img name on MSysResources table

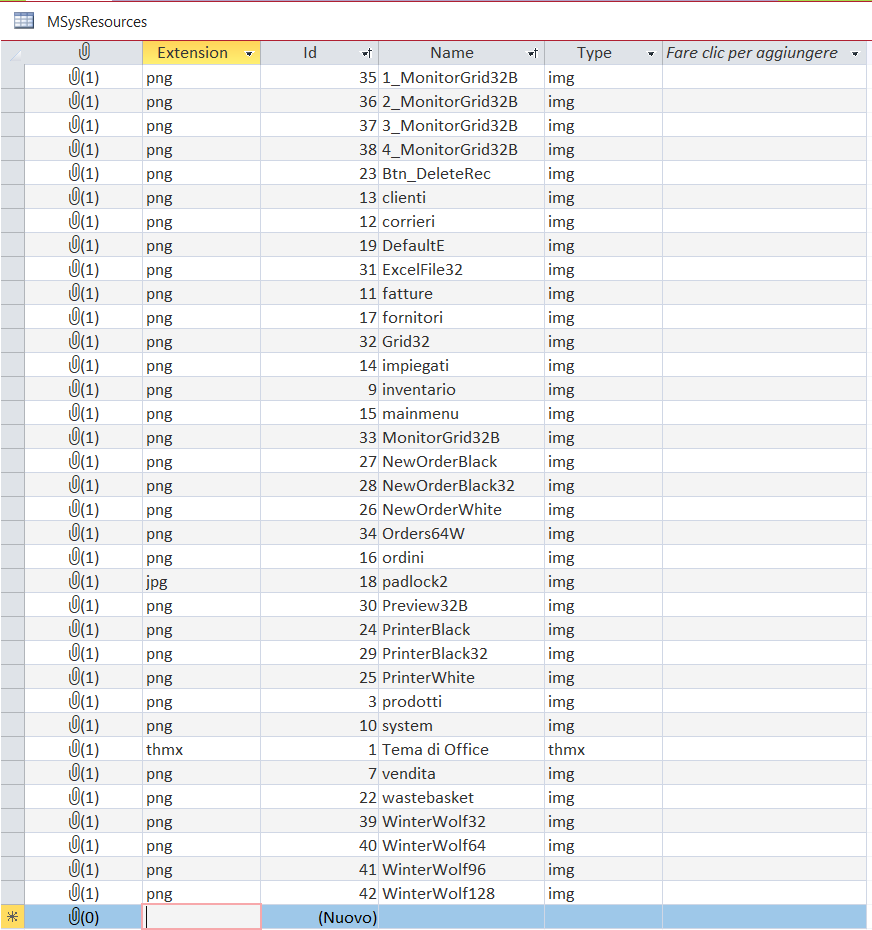

1.) Insert img on the table MSysResources -> for ex. ExcelFile32.png

Data: Attach the image​

Extension: png​

id : autonumber​

Name: ExcelFile32​

Type: img​

2.) in the code refer to the image found with Dloockup()

ex code:

Private Sub Btn1_Click()
' ?DLookup("[Data]", "[MSysResources]", "[Name] = 'NewOrderBlack'") --> Field Data: NewOrderBlack.png
' ?DLookup("[Name]", "[MSysResources]", "[Name] = 'NewOrderBlack'") --> Field Name: NewOrderBlack
xImg = DLookup("[Name]", "[MSysResources]", "[Name] = 'NewOrderBlack'")
nImg = DLookup("[Name]", "[MSysResources]", "[Name] = 'ExcelFile32'")
mImg = DLookup("[Name]", "[MSysResources]", "[Name] = 'MonitorGrid32B'")

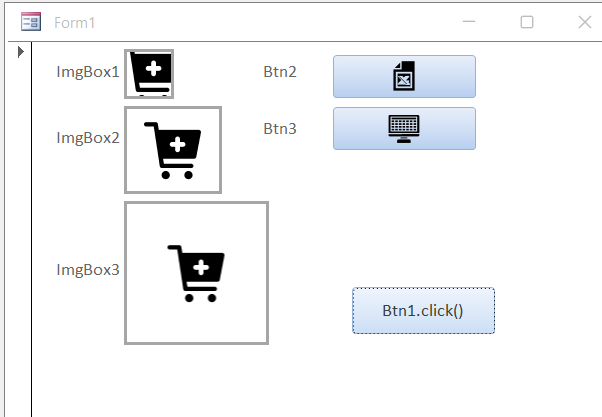

'Controls: ImgBox1, ImgBox2, ImgBox3, Btn2, Btn3
' imgboxes
For x = 1 To 3
    With Forms("Form1").Controls("ImgBox" & x)
        .PictureType = 2
        .SizeMode = acOLESizeClip   'acOLESizeClip or acOLESizeStretch or acOLESizeZoom
        .picture = DLookup("[Name]", "[MSysResources]", "[Name] = 'NewOrderBlack'")
        ' OR .picture = xImg
    End With
Next

'buttons NEED 32x32 img size .SizeMode Don't work!
With Me.Btn2
        .PictureType = 2
        .picture = DLookup("[Name]", "[MSysResources]", "[Name] = 'ExcelFile32'")
        ' OR .picture = nImg
End With
With Me.Btn3
        .PictureType = 2
        .picture = DLookup("[Name]", "[MSysResources]", "[Name] = 'MonitorGrid32B'")
        ' OR .picture = mImg
End With

End Sub



[zinfra]

Simpy refer to img name on MSysResources table
1.) Insert img on the table MSysResources -> for ex. ExcelFile32.png

Data: Attach the image​

Extension: png​

id : autonumber​

Name: ExcelFile32​

Type: img​

2.) in the code refer to the image found with Dloockup()

ex code:

Private Sub Btn1_Click()
' ?DLookup("[Data]", "[MSysResources]", "[Name] = 'NewOrderBlack'") --> Field Data: NewOrderBlack.png
' ?DLookup("[Name]", "[MSysResources]", "[Name] = 'NewOrderBlack'") --> Field Name: NewOrderBlack
xImg = DLookup("[Name]", "[MSysResources]", "[Name] = 'NewOrderBlack'")
nImg = DLookup("[Name]", "[MSysResources]", "[Name] = 'ExcelFile32'")
mImg = DLookup("[Name]", "[MSysResources]", "[Name] = 'MonitorGrid32B'")

'Controls: ImgBox1, ImgBox2, ImgBox3, Btn2, Btn3
' imgboxes
For x = 1 To 3
    With Forms("Form1").Controls("ImgBox" & x)
        .PictureType = 2
        .SizeMode = acOLESizeClip   'acOLESizeClip or acOLESizeStretch or acOLESizeZoom
        .picture = DLookup("[Name]", "[MSysResources]", "[Name] = 'NewOrderBlack'")
        ' OR .picture = xImg
    End With
Next

'buttons NEED 32x32 img size .SizeMode Don't work!
With Me.Btn2
        .PictureType = 2
        .picture = DLookup("[Name]", "[MSysResources]", "[Name] = 'ExcelFile32'")
        ' OR .picture = nImg
End With
With Me.Btn3
        .PictureType = 2
        .picture = DLookup("[Name]", "[MSysResources]", "[Name] = 'MonitorGrid32B'")
        ' OR .picture = mImg
End With

End Sub

with a function:
Public Function GetPicture(Num_pic As Integer)
' get picture from MSysResources table
GetPicture = DLookup("[Name]", "[MSysResources]", "[id] = " & Num_pic & "")
End Function

on a form code:
Me.ImgBox3.picture = GetPicture(22) ' the ID number of the image (wastebasket.png)
