option group background color (1 Viewer)

[Siegfried]

Dear experts,

I'm trying to figure out how to change the OptionGroup background field to color based on the value of the option button.
I found that the control is transparant: OptionGroup.BackStyle 0 and can be changed to normal OptionGroup.BackStyle 1 and then the interior color can be set by the BackColor property.

I'd like the OptionGroup BackColor to be green on Yes/True and red on No/False.

Can someone please help me with this code?

Thanks

Best regards,

Siegfried



[arnelgp]

add code to the OptionGoup AfterUpdate.
if the first Option is Yes:


private sub OptionGroupName_AfterUpdate()
With Me.OptionGroupName
If .Value=1 'yes
.backcolor=vbGreen
Else
.backcolor=vbred
end if
end with
end sub



[Siegfried]

add code to the OptionGoup AfterUpdate.
if the first Option is Yes:


private sub OptionGroupName_AfterUpdate()
With Me.OptionGroupName
If .Value=1 'yes
.backcolor=vbGreen
Else
.backcolor=vbred
end if
end with
end sub

Thanks, tried but not getting a color, also when I switch the option button I get error 2427: "your entered an expression that has no value.

Private Sub Frame28_AfterUpdate()

With Me.Frame28
If Option31.Value = 1 Then
Frame28.BackColor = vbGreen
Else
Frame28.BackColor = vbRed
End If
End With
End Sub



[June7]

Did you set the BackStyle property to Normal?

Don't reference Option31, the frame has the value, not the button:

If .Value = 1 Then

If you use With block for Frame28, no need to repeat Frame28 qualifier.

Code works for me.



[arnelgp]

Private Sub Frame28_AfterUpdate()

With Me.Frame28
.BackColor=vbWhite
If .Value = 1 Then
.BackColor = vbGreen
Else
.BackColor = vbRed
End If
End With
End Sub



[arnelgp]

we are testing Frame28, not the individual Option31.



[Siegfried]

we are testing Frame28, not the individual Option31.

I got confused.
I entered the code as you showed, I can toggle the buttons but no color, option group background stays transparent?

Private Sub Frame28_AfterUpdate()

With Me.Frame28
.BackColor = vbWhite
If .Value = 1 Then
.BackColor = vbGreen
Else
.BackColor = vbRed
End If
End With
End Sub



[June7]

See post4: Did you set the BackStyle property to Normal?



[Siegfried]

See post4: Did you set the BackStyle property to Normal?

Thanks, overlooked that.
I'm almost there, but when I close the form the colors go back to default transparant, how can I make that it stays green when yes and red when no?

Private Sub Frame28_AfterUpdate()

With Me.Frame28
.BackStyle = 1
.BackColor = vbGreen
If .Value = -1 Then
.BackColor = vbGreen
Else
.BackColor = vbRed
End If
End With
End Sub



[isladogs]

Just set the background as normal in the form design.
No code needed



[arnelgp]

call it also on the Current event of yhe form:

private sub form_current()
call Frame28_AfterUpdate
end sub

Private Sub Frame28_AfterUpdate()

With Me.Frame28
.BackStyle = 1
.BackColor = vbWhite
If .Value = -1 Then
.BackColor = vbGreen
Elseif .value=2 then
.BackColor = vbRed
End If
End With
End Sub



[Siegfried]

I got on more last question.
When I select for a new record in form only one Option Group show a button and the right color, my other 3 Option Groups don't show buttons and all have color red value false?
How can I fix that?

Thanks.



[June7]

Don't understand "don't show buttons". How can option group not show buttons?

What color do you want the background to show?

Perhaps you need to set Default Value of the frame.



[Siegfried]

Hi June,

Thanks again for your interest in my post/question.

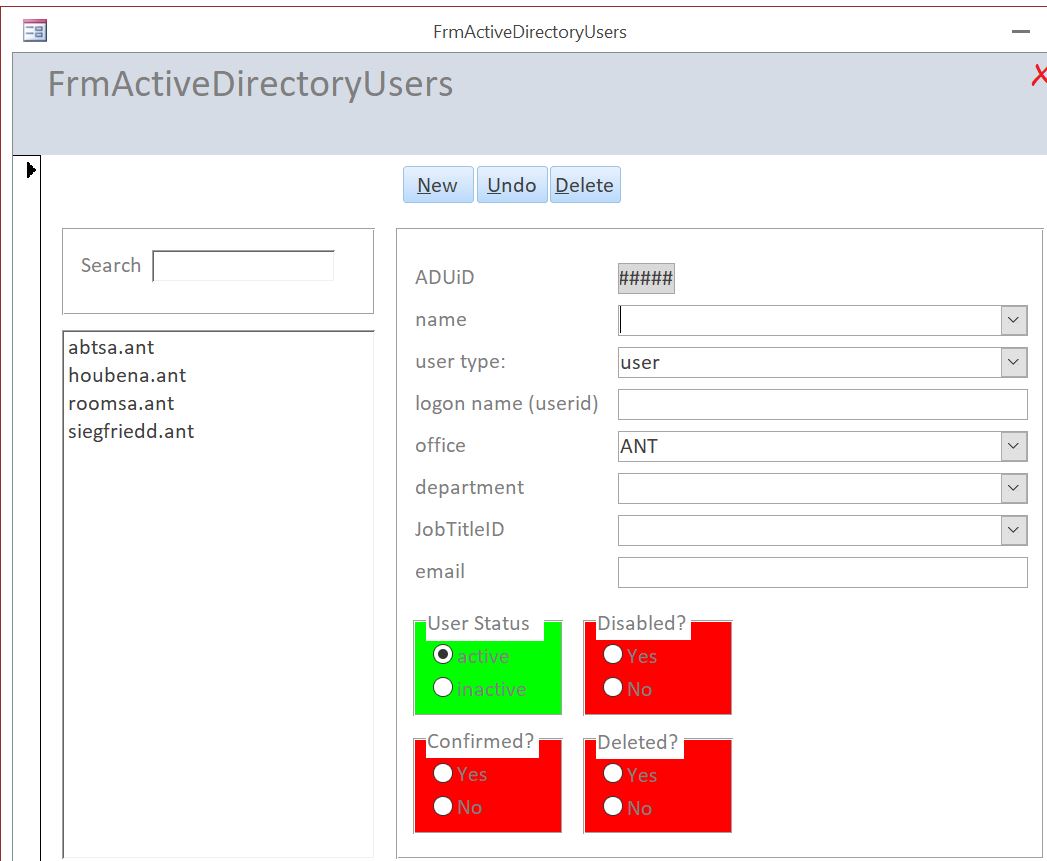

I have uploaded a picture, you will understand when you see.
This is what I get after pressing my New button for adding a new record.



[Siegfried]

I figured it out, thank to your remark on the default values.
They were incorrect, now all working.

Thanks a lot!!!
