Solved Seat Reservation / Grafik Programme (1 Viewer)

[MarionD]

Morning all,

I have a small application where I sell tickets for concerts in a hall that can seat 720 People.
At the moment I enter the name and address in my tbl_Customers, then in a dropdown list from my tbl_Seats I select the ticket Numbers (seat numbers) . After Update I enter the info into a Kett Table, recording customerID and Ticket ID. From here I can do different reports etc.

What I would like to be able to do is click on a grafik "Plan" of the Hall, double click the seat and assign it to a customer/enter a new customer.

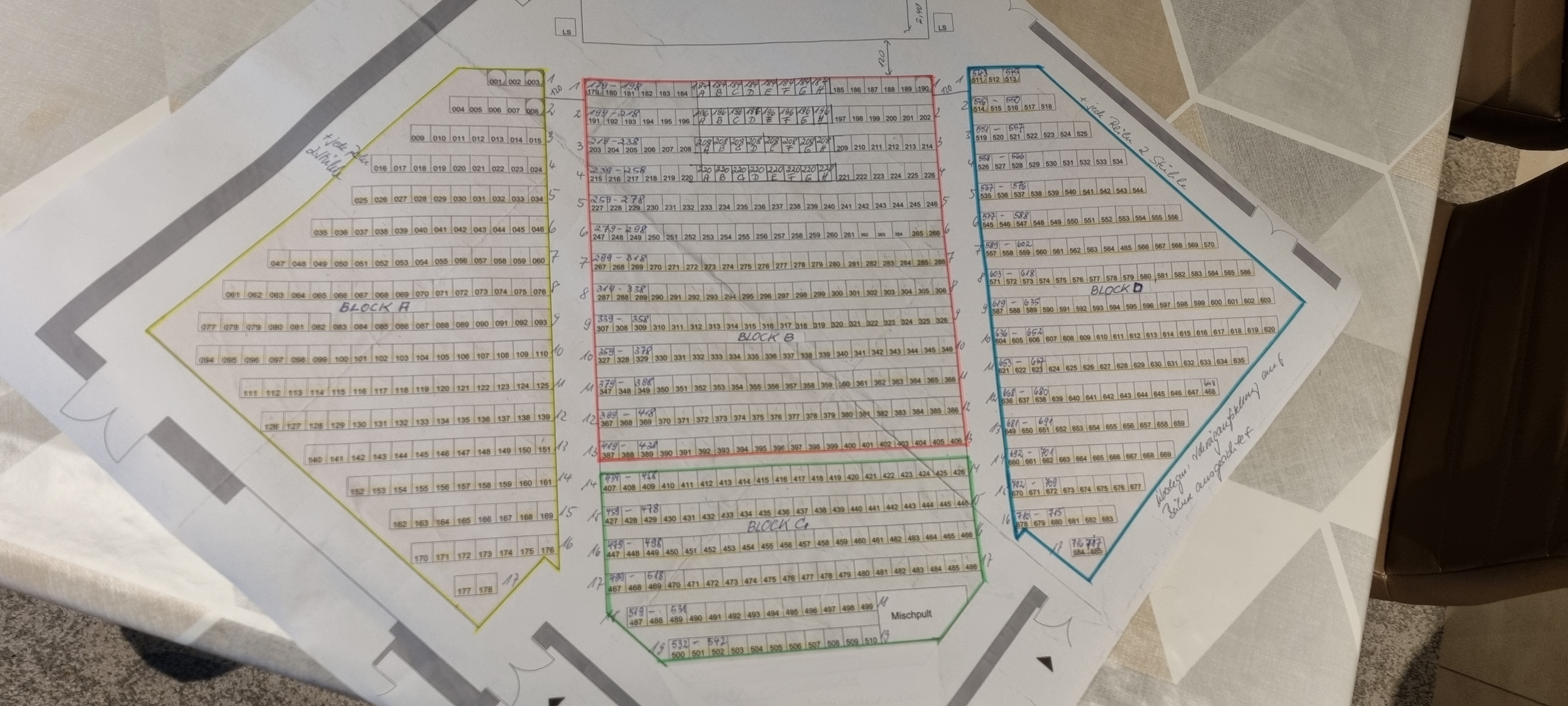

Is this at all possible, just using access or would I need an external graphic program? I've been trying to google, but come up with a lot of photo graphic programs... can't seem to find what I want. Does anyone have any ideas or recommendations I could follow up on? SOmething like this....


Thanks so much.



[Gasman]

Look at a calendar db. As that pretty much does what you are asking, but for days.
You would need to put the seats on various tabs, perhaps for each area? Plus there is a limit to the number of controls per form.



[MarionD]

Thanks Gasman, will look into that



[Uncle Gizmo]

In the concert hall,
How many seats in each row?
How many rows?



[Uncle Gizmo]

Ah! I see the seating plan!



[isladogs]

One thing you need to be aware of
The number of seats (720) is close to the lifetime control limit for a form.
The limit is officially 754, though in recent versions of Access, if my memory serves me correctly, it is actually around 938.



[ADIGA88]

One thing you need to be aware of
The number of seats (720) is close to the lifetime control limit for a form.
The limit is officially 754, though in recent versions of Access, if my memory serves me correctly, it is actually around 938.

side note: I hate this issue with access that you can't generate controls at runtime.



[jdraw]

MarionD,

See this older post by ChrisO - specifically the database in post #8 (Macbeth Seats).
It may give you some insight and ideas.
Chris was a technical authority on many things Access/vba/database and his posts/comments and sample code are often referenced.



[KitaYama]

Many years ago I saw a database about the parts of a complicated machine.
There was a form with the machine picture as it's background image.
When mouse was clicked on different parts on the image, a form with a lot of data about that specific part was opened.

If my memory serves me right, there was a table with a lot of coordinates for x & y.
When mouse was clicked on the image, the coordinates of the mouse current position was picked up and compared to the values of the table.
There was not even a button on the form.

I may be wrong though.



[MajP]

This is very doable in Access. You have to use subforms. You have 4 natural subforms.
As said take look at this year view calendar.

In this thread look at the yearview control and my linear calendar.

Date Pickers, Calendar Controls, and Calendar resources

There has been some recent interest in a replacement for the MS calendar control that existed prior to 2010. I have been collecting date pickers, calendar controls, and calendars for a long time and thought it would be a good idea to have one thread with lots of good examples. Some of these...

www.access-programmers.co.uk

This is far harder because it allows you to add and move objects, but it shows how to link a graphic to a database.

Class to move about 20 pictures

Hello, I'm building a kind of floor plan. For this I placed 50 image objects on a form. I am able to display certain images (for example a table for 4 persons or a table for 8 persons) on a selected image object. What I want is that these image objects can be moved with MouseDown/MouseMove...

www.access-programmers.co.uk

When building a form like that with lots of controls. You most likely want them named correctly, sized, and located. To save lots of time I build some code to actually build the form when I am designing it (not dynamic). That way if I get one bad name or tag I can just rebuild the controls on a new form.

Class to move about 20 pictures

Hello, I'm building a kind of floor plan. For this I placed 50 image objects on a form. I am able to display certain images (for example a table for 4 persons or a table for 8 persons) on a selected image object. What I want is that these image objects can be moved with MouseDown/MouseMove...

www.access-programmers.co.uk

The issue the limit to controls is bigger than 720, but still close to 900. This is the lifetime of the form so if you put 400 controls on a form and delete them than add another 400 controls you are at 800. Another time you will max out and break the form. This is why I use code so I can start with a blank form.



[arnelgp]

actually i got 1170 controls (i used Label) before i got error on adding controls.



[arnelgp]

you create an "image" (bmp/png on your map).
then use it as the Picture of the form.
now overlay each "numbered" box with a Label control (the Name is same as the number, prefixed with "lbl").
on the click/dbl_click event of the label you open a form to add the customer for that particular seat.

only adding the label need patience.



[Uncle Gizmo]

I answered a question on AWF about 6 years ago where the user wanted to display car hire Info. As Colin pointed out, you're getting very near the limit of controls that can be placed on an access form. I reduced the number of controls place on the form by using subforms. I did a couple of videos explaining my code and what I was trying to do.. See YouTube Videos below:-

Display Vehicle Hire Period - Nifty Access​

Car Hire Update - Nifty Access​



[Uncle Gizmo]

Many years ago I saw a database

Same here!

The example I saw was an ownership map.

I posted a copy to the forum Here:-

its complicated.....

Hi everyone, This is beyond my current capabilities so i will try to explain: In the form attached you will see six buttons in pairs. Each button is numbered e.g. Btn1 - Btn6 I have been able to insert the position number which correlates to the button number into the table and corresponding...

www.access-programmers.co.uk



[arnelgp]

sample demo of what you need.



[MarionD]

Thank you all so much for the advice/suggestions.
Just to let you know I am working on it and "following up all the leads"
I will post again when (if) I get it working

Marion



[CJ_London]

I use a technique similar to post #9. I create an image of the seating layout in excel/word/publisher then use a screen grab to a save as a jpg if not already available



[arnelgp]

i removed most of the "flicker" when adding/updating "seat" record.



[MarkK]

You could put an image on a form, and handle the Image.MouseDown event. This event provides the xy coordinates of the click. Using that information, make a table of where features are located. If all your features are the same size, like seats in an auditorium, then you only need to store, say, the upper left point, and then calculate the offsets for size.

After that, handle Image.MouseMove to show a hand cursor over clickable regions, and handle Image.MouseDown to handle clicks.



[MarionD]

i removed most of the "flicker" when adding/updating "seat" record.

Hi there!

Wow I can't believe you did the whole thing for me! Thank you so much!!

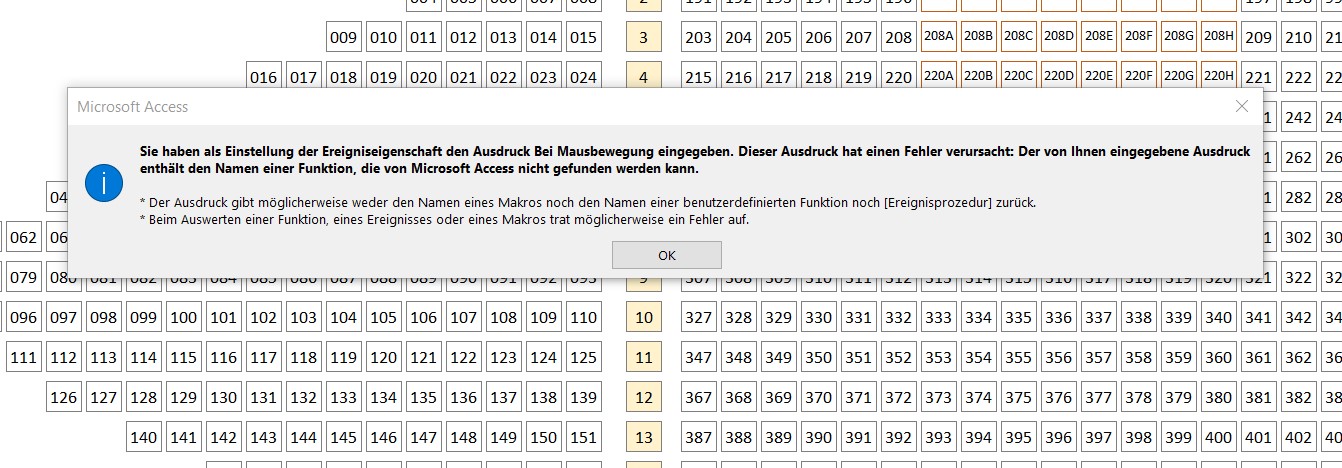

I just have a problem... when I open the DB/form I get an error message (on mousemove) -Sorry about the German Basically it says there is a procedure on mousemove that access doesn't recognize? I have tried putting a stop in the code to go through it slowly but somehow thats not working.
Would be so great if you could help me out.
Wow still can't believe you did all that work for me!
